    3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike

    Ask Lasest Price
    Brand Name : OEM
    Model Number : NC3000
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Paypal , Alibaba Trade assurance
    Supply Ability : 2,000pcs per month
    Delivery Time : 15 working days after received your payment
    • Product Details
    • Company Profile

    3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike

    NC3000 7speed 3000w ebike hub motor 45H magnet aluminum stator with temperature sensor

    3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike

    The 3000w ebike hub motor spec. details :


    ModelNC3000
    Motor power3000w
    Axle10mm* 16mm
    motor diameter244mm
    Voltage48v-96v
    Magnet Height45mm
    statoraluminum alloy
    windings860rpm @72v, 21x3T
    waterproof gradeIP54
    numbers of pole pairs23
    peak phase current200amp
    Max torque> 110N.m
    Max Efficiency89.80%
    drop out149mm
    Numbers of Motor phase3 pcs
    Hall sensor2 sets, one is for spare
    hall sensor phasing120 degrees
    cross section of phase wire10mm2
    temperature sensorKTY82/122
    colordark black
    N.W9.8kgs

    Description for 3000w ebike hub motor:


    • Low noise
    • Electricity saving, 89%
    • High torque, 190N.M
    • High strength
    • High safety coefficient, high efficiency
    • Long service life
    • Not easy to be hot
    • Big power
    • Warranty : 2 years
    • OEM

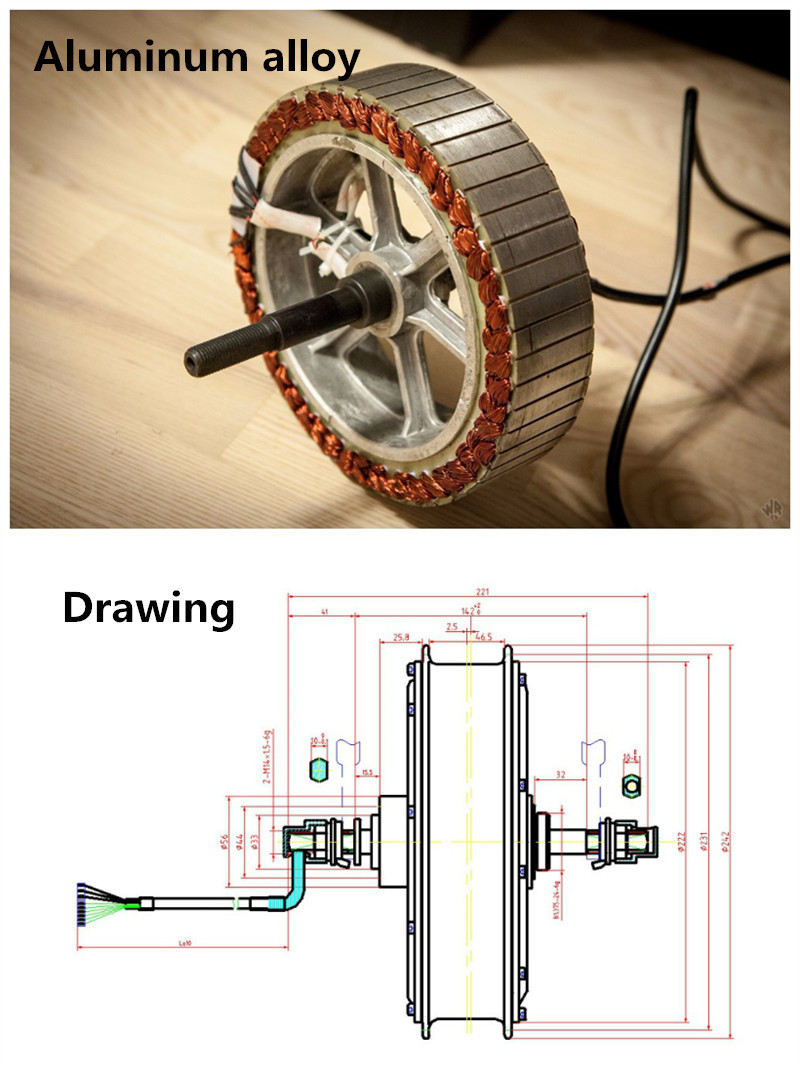

    The drawing for 3000w hub motor :

    3000w 7 Speed Electric Bike Hub Motor / Bicycle Wheel Electric Motor For Mountain Bike


    l PRODUCT PACKING

    • Material : carton with foam
    • package size : two motors in one box, the size is 48cm x 28cm x 28cm
    • gross weight : 18kgs.
