Brand Name : | NC |
Model Number : | NC5000 |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T,, Western Union,paypal |
Supply Ability : | 2000pcs/Month |
Delivery Time : | 7-10 working days after payment |
50H magnet 72v 5000w ebike motor:

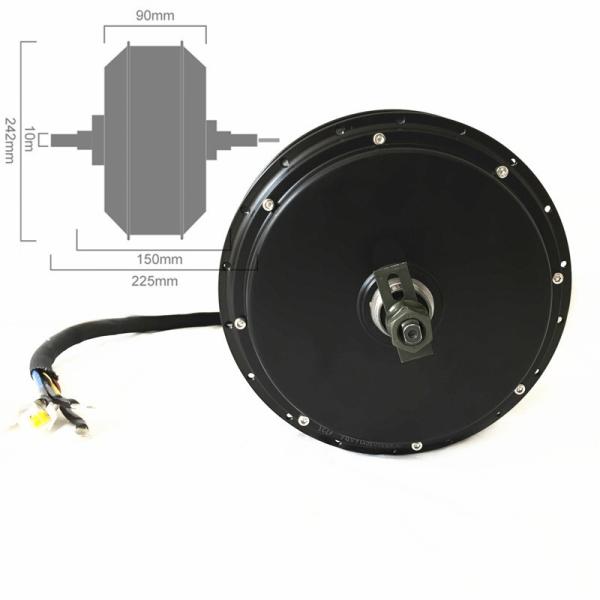

1.Picture of this 5000w electric bike motor:
2.Detailed parameter of this 5000w electric bike motor:
Model | NC5000 |
Motor power | 5000w |
Axle | 10mm* 16mm |
motor diameter | 244mm |
Voltage | 48v-96v |
Magnet Height | 50mm |
stator | aluminum alloy |
windings | 700rpm @72v, 4TX20 |
waterproof grade | IP54 |
numbers of pole pairs | 23 |
peak phase current | 300amp |
Max torque | > 190N.m |
Max Efficiency | 89.80% |
drop out | 149mm |
Numbers of Motor phase | 3 pcs |
Hall sensor | 2 sets, one is for spare |
hall sensor phasing | 120 degrees |
cross section of phase wire | 10mm2 |
temperature sensor | KTY82/122 |
color | dark black |
N.W | 12.75kgs |
Description for 5000w ebike hub motor:
3.Package of this 5000w electric bike motor:
![]() |
