TFT color display 72v 5kW Electric Bike Hub Motor Conversion ebike
kit with lithium battery
Specification :
This is 72 v programmable controller ebike kit , this wheel use
Sunring sim , Sabvoton controller , regen braking system and so on
. 48v 5000w ebike kit for enduro ebike and motorcycle kit .
| Motor | 48v -72v 5000w DC motor with double hall sensor (150mm open size,
suitable for the bicycle disc brake and 7 speed gears ) |
| Display | TFT color display which can set parameters in the display |
| Brake levers | Electric Brake(for both side power off) or Brake sensor |
| Wheel | Sun ringle MTX 33/39 Double-wall rim or motorcycle rims (10g spokes
. rim size: 26" 28" 29" or 18" 19" 21'' for option) |
| controller | Intelligent sinewave programmable controller 72v . 80A .24mosfets
Can programmable via bluetooth App |
| Throttle | twist throttle with Key switch and battery voltage indicator |
| Brake | 180mm /203mm disc brake |
| Freewheel | 7 speed gears |
| Warranty | Two years |
| N.W./G.W. | 20kg |

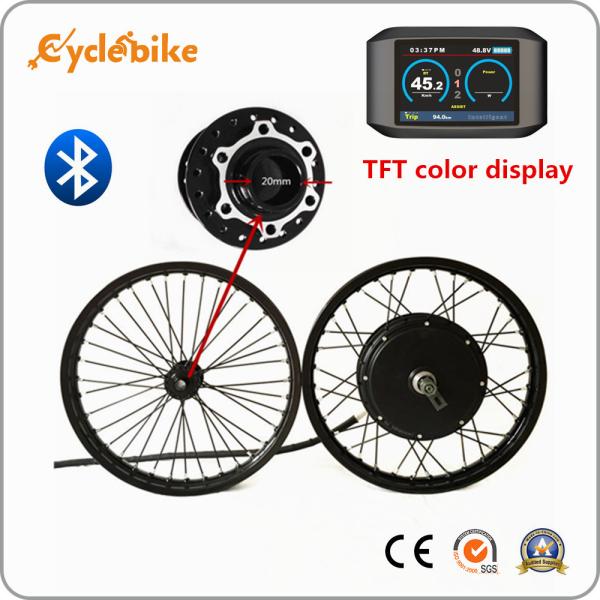

TFT color display for 5000w electric bike kit , there is water
proof connector .
Drawing of 5000w electric bike kit.
| Motor power | 5000w |
| Axle | 10mm* 16mm |
| Type | Rear motor only |
| Voltage | 72v |
| Magnet Height | 50mm |
| Design | Brushless gearless |
| Windings | 4T*20 |
| Waterproof grade | IP54 |
| RPM | 860 |
| Number of pole pairs | 16 |
| Peak phase current | 190A |
| Number of motor phase | 3pcs |
| Max torque | 190N.M |
| Max Efficiency | 89.8% |
| Open size | 150mm for rear motor only |
| Wheel size | 26inch |
| Hall sensor | Yes |
| Hall sensor angle | 120 degrees |
| Integrate speed sensor | Optional |
| Brake | Disc brake |
| Surface color | Dark black |
| N.W | 12.75kgs |
| Warranty | 2 years |
| Delivery time | 7 days for sample ,15-35 days for bulk order depends on quantity |

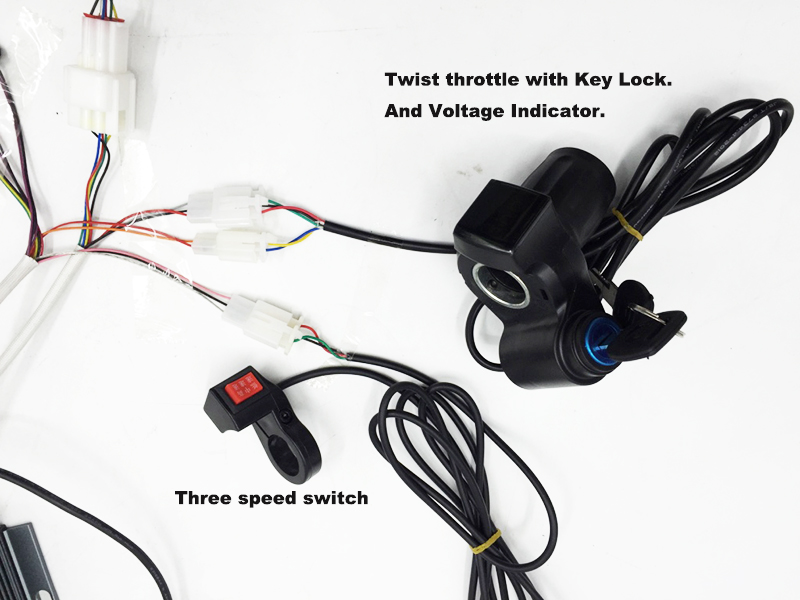

Throttle type : twist throttle with 3 speed , lock and power
dispaly and water proof connector electric brake lever .

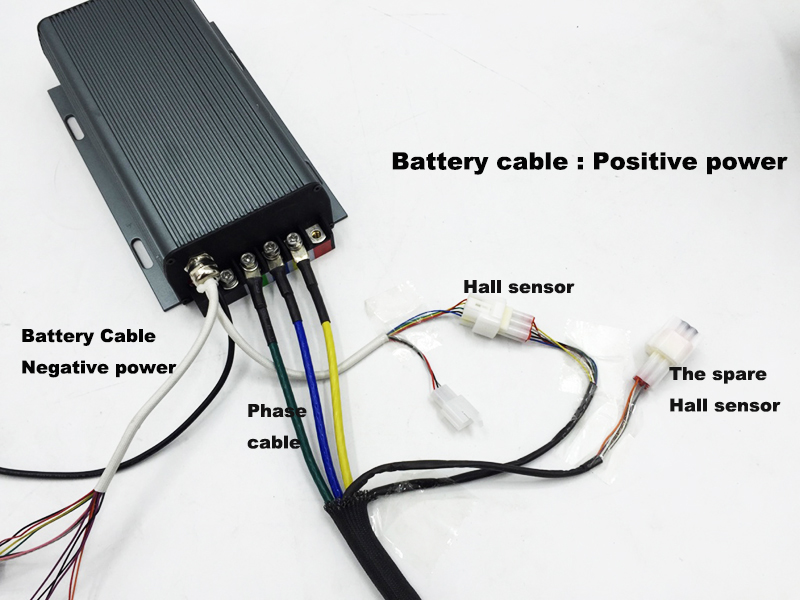

80A Sabovton controller with Buletooth , can be programmable
48v-72v 80amp smart controller ,24mosfet with sine wave system,
Cables’ Function :
Hall sensor, 3 phase,Throttle,Three speed,Battery Indicator,EBS
brake, Regen.Brake,Cruise ,Connector for Cycle Analyst.

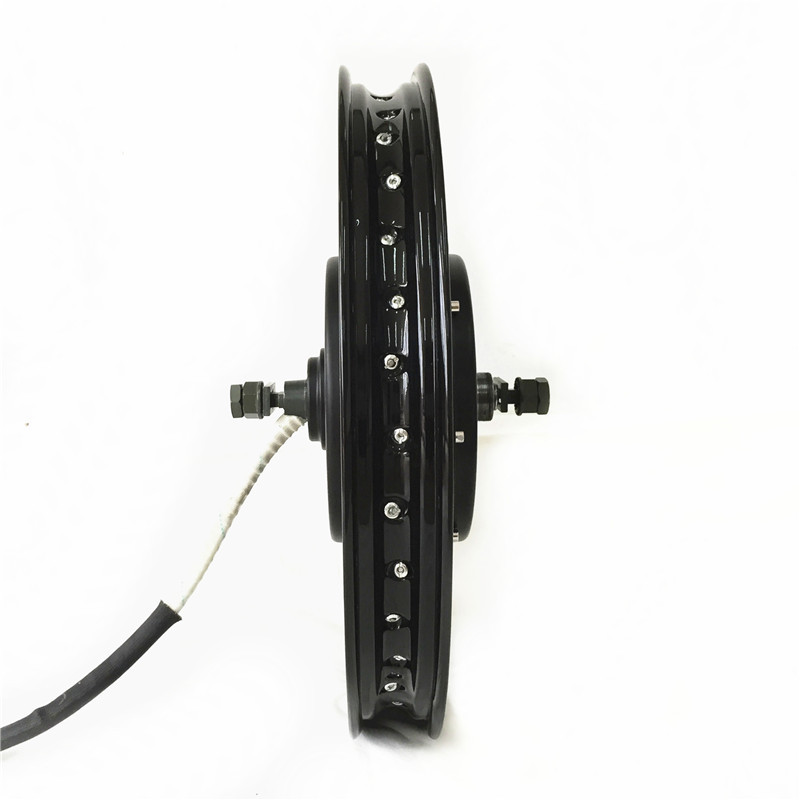

Sun ringle MTX 33/39 Double-wall rim or motorcycle rims (10g spokes
. rim size: 26" 28" 29" or 18" 19" 21'' for option)
Front wheel and rear motor wheel .
